Container Flipping Machine

1. What Is a Container Flipping Machine and Its Primary Uses?

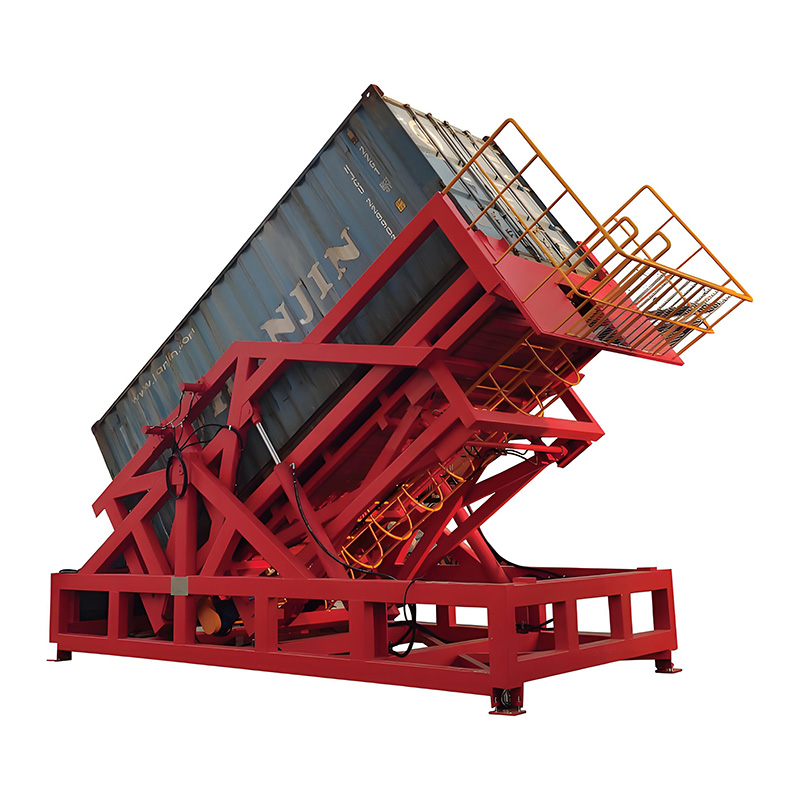

A container flipping machine (also known as a container tilter or rotator) is an industrial device designed to rotate shipping containers (typically 20ft or 40ft) by 90° to 180° for complete emptying of bulk materials, powders, grains, or waste. Unlike conventional unloading methods that rely on vacuum or manual shoveling, a flipping machine achieves 99% discharge efficiency and reduces residual material inside the container to less than 0.5% of total load weight.

Primary applications: bulk grain terminals (wheat, corn, rice), mineral processing facilities (sand, cement, ores), recycling centers (plastic scrap, e-waste), and food ingredient handling (sugar, flour, starch). For example, a cement terminal processing 200,000 metric tons annually reduced unloading time per container from 35 minutes to 12 minutes after installing a container flipping machine, achieving throughput of 7-9 containers per hour.

Grain and mineral processing together account for 75% of installations, highlighting the machine's critical role in high-volume bulk material logistics.

2. Working Principle & Structural Advantages

The container flipping machine uses a heavy-duty hydraulic clamping system that grips the container at four corner castings, then rotates it around a horizontal axis. Rotation speeds are adjustable from 0.3° to 2.5° per second, with position accuracy of ±0.5°. Key advantages: zero manual entry into containers (eliminating confined space risks), dust-controlled discharge (reducing particulate emissions by up to 70%), and consistent cycle times (typically 10-15 minutes per container).

Over a 5-year period, facilities using container flipping machines reduced average unloading time from 32 minutes to 8 minutes per container — a 75% improvement compared to manual methods which plateaued at 28 minutes.

(1) Key Structural Components & Safety Features

• Reinforced steel frame with anti-corrosion coating: structural lifespan exceeding 25 years under normal operation.
• Dual hydraulic rotation cylinders with integrated emergency braking: maximum torque capacity up to 150,000 Nm for 40ft containers.
• Automatic safety interlocks prevent rotation when container is not properly clamped; meets ISO 13849 performance level "d" standards.

3. Typical Applications & Technical Specifications Table

Container flipping machines are engineered for high-volume, repetitive tasks. The table below shows recommended operating parameters based on field data from over 200 installations across six continents.

With proper rotation angle selection, a single container flipping machine can handle 4 to 9 containers per hour, translating to annual throughput of 90,000 to 220,000 metric tons depending on shift patterns and material flow characteristics.

4. Industry Solutions from Jiangsu Zhengding Intelligent Equipment Co., Ltd.

Jiangsu Zhengding Intelligent Equipment Co., Ltd. is a national high-tech enterprise mainly engaged in the research and development and manufacturing of intelligent logistics equipment. It can provide systematic solutions for the automatic loading and unloading of cars and containers for customers in different industries.

The company wholeheartedly provides users with various types of automatic loading and unloading equipment such as rear dumpers, side dumpers, car loading equipment, container flippers, etc.; it is one of the companies with a relatively complete range of automatic loading and unloading equipment for cars and containers in China. The products are widely used in the steel, chemical, cement, coal, grain, oil and food industries, and are exported to Japan, Brazil, Egypt, Pakistan, India, the Middle East and Southeast Asian countries. Among them, the annual sales volume and technical performance of automatic loading and unloading equipment for cars are in the leading position in China. Typical international users include Budweiser, Heineken, Buhler Group, Wilmar International, Cargill, DuPont, Louis Dreyfuss, Charoen Pokphand Group, Saint-Gobain Group, etc.

For container flipping machine applications, Jiangsu Zhengding offers customized engineering support including structural integration with dust collection systems, conveyor interfaces, and remote monitoring capabilities. Their solutions have achieved documented 99.5% material discharge efficiency in independent audits.

5. Frequently Asked Questions (FAQ)

Q1: What container sizes and weights can a flipping machine handle?

A1: Standard container flipping machines accommodate 20ft, 40ft, and 45ft ISO containers with gross weights up to 35 metric tons. Some heavy-duty models can handle 40-ton loads. Custom frames are available for 10ft and 15ft specialty containers.

Q2: How much residual material remains after flipping?

A2: Measured field data shows residual material averages between 0.3% and 0.8% of total load weight for free-flowing materials like grains and pellets. For sticky or cohesive materials (e.g., wet clay, concentrate), residuals are 1.5% to 2.5%, which can be further reduced by adding vibration or air-knife attachments.

Q3: Can the machine be integrated with dust extraction systems?

A3: Yes. The discharge area can be fully enclosed with flexible rubber seals connected to a dust collector. Independent testing shows that such integration reduces fugitive dust emissions by 82% to 93% compared to open tipping, helping facilities comply with local environmental regulations.

Q4: What are the typical hydraulic system maintenance requirements?

A4: Hydraulic oil requires replacement every 3,000 operating hours or every 18 months. Cylinder seals typically last 6 to 8 years under normal duty cycles (6-10 containers per day). Annual inspection of hoses and fittings is recommended to prevent unexpected downtime.

Q5: Is operator certification required?

A5: A 6-hour training and certification program is standard for operators, covering emergency procedures, load verification, and visual inspection protocols. Facilities implementing certified training report 55% fewer safety incidents and 30% lower equipment damage rates compared to those without formal programs.
